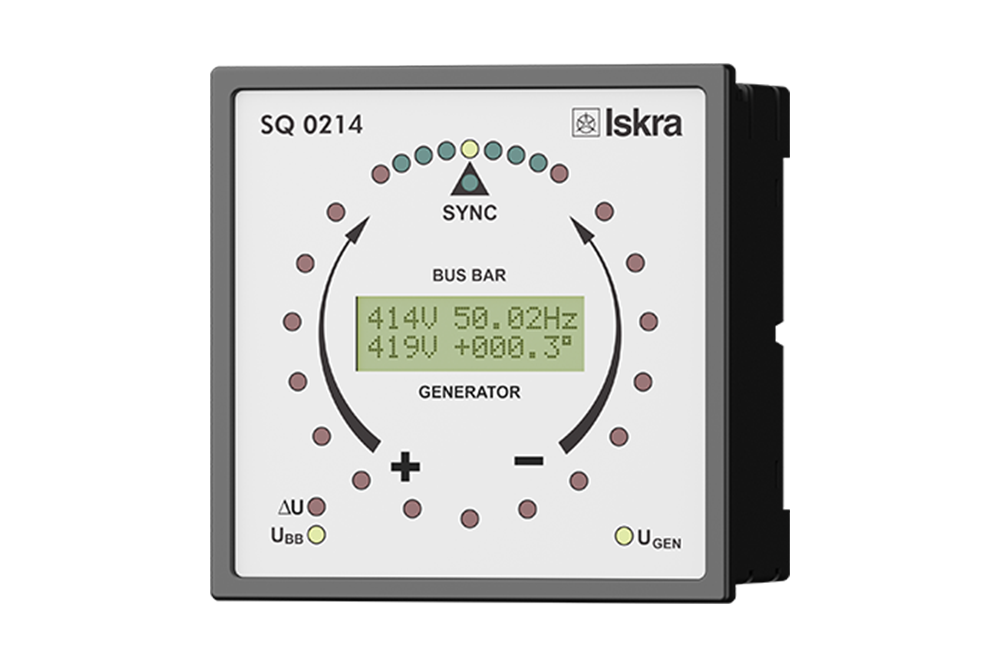

Synchronization meter SQ0214
If you are looking for manually or semi-automatically synchronise generators and bus bars, you have come to the right place. Our synchronization meters are truly unique products. They measure phase differences between generator and bus bar, voltages and the frequencies of the two systems.
They can replace up to five instruments, occupying less space and giving you more information, for a lower price. Furthermore, they are equipped with status output, they are also appropriate for mounting on ships. They are equipped with LED diodes, so you can actually see the phase difference. When synchronising conditions are set, the synchronizing relay is activated.

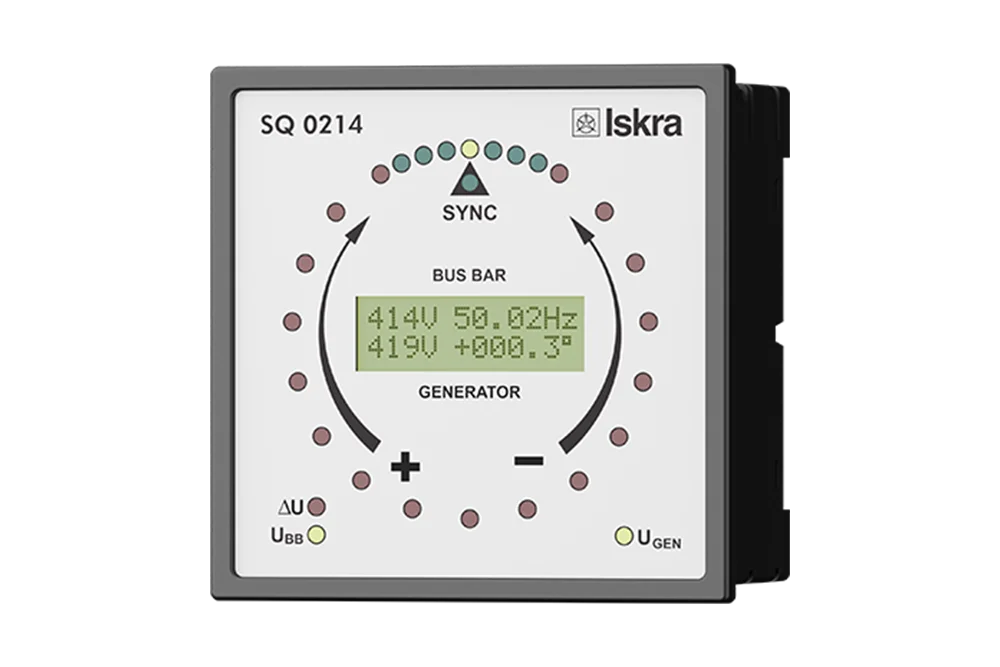

Synchronization meter SQ0214
If you are interested in the phase difference between generator and bus bar, select SQ 0204. If you also want to have information about voltages and frequencies of the systems, select SQ 0214.
The SQ 0201 phase sequence indicator is intended for determining phase sequences in a three-phase network, from 200 V to 500 V and from 50 Hz to 60 Hz. The indicator is provided with two built-in glow lamps indicating L1, L2, L3 phase sequence.
-
Contact Sales
Egon Dobre
E-mail Contact card -
Technical Documentation
Data Sheet SQ0201, SQ0301 PDF 532 kB Data Sheet SQ 0x04, SQ 0x14. PDF 514 kB Measuring Instruments catalogue PDF 5,964 kB -
Certificates
EC Declaration of Conformity for SQ 0x04, SQ 0x14 PDF 510 kB EC Declaration of Conformity for SQ 0x04, SQ 0x14 JPG 778 kB Lloyds certificate SQ02x4 PDF 373 kB Bureau Veritas Marine & Offshore certificate PDF 409 kB UKCA declaration of conformity_for_SQ_0x04_SQ_0x14 PDF 214 kB
