Energy meter IE38Mx

The meters IE38Mx are intended for energy measurements in a three-phase electrical power network and can be used in residential, industrial, and utility applications.

The meter measures energy directly in 3-wire and 4-wire networks according to the principle of fast sampling of voltage and current signals.


It is a compact three-phase direct connected din-rail mounting meter.



Features class B for active energy and class 2 for reactive energy.



The meters are MID approved.

  • Product request
  • Download software

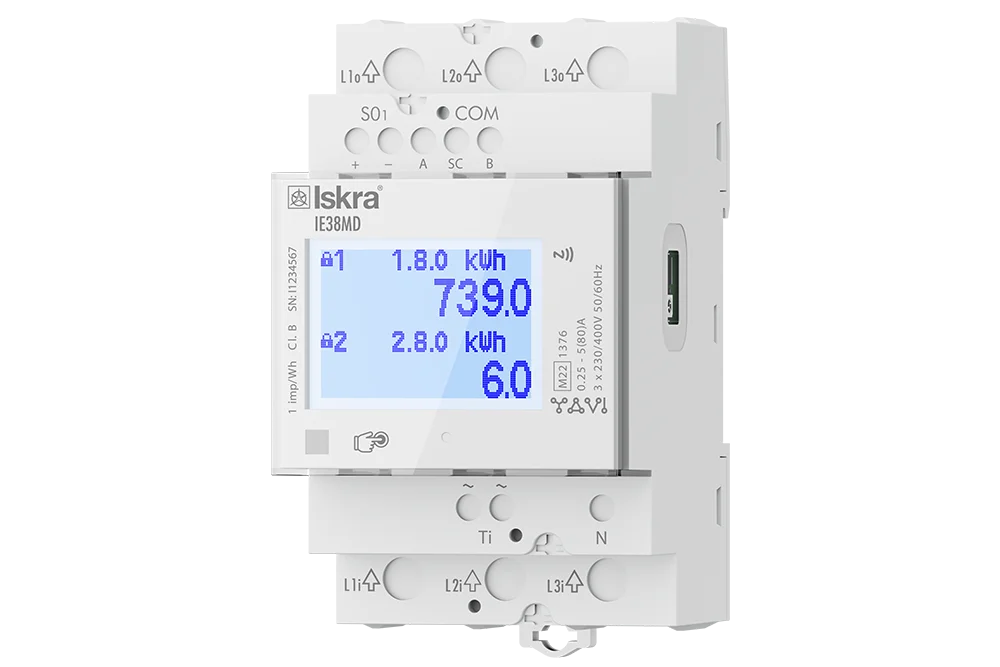

Smart Energy Meter IE38MD

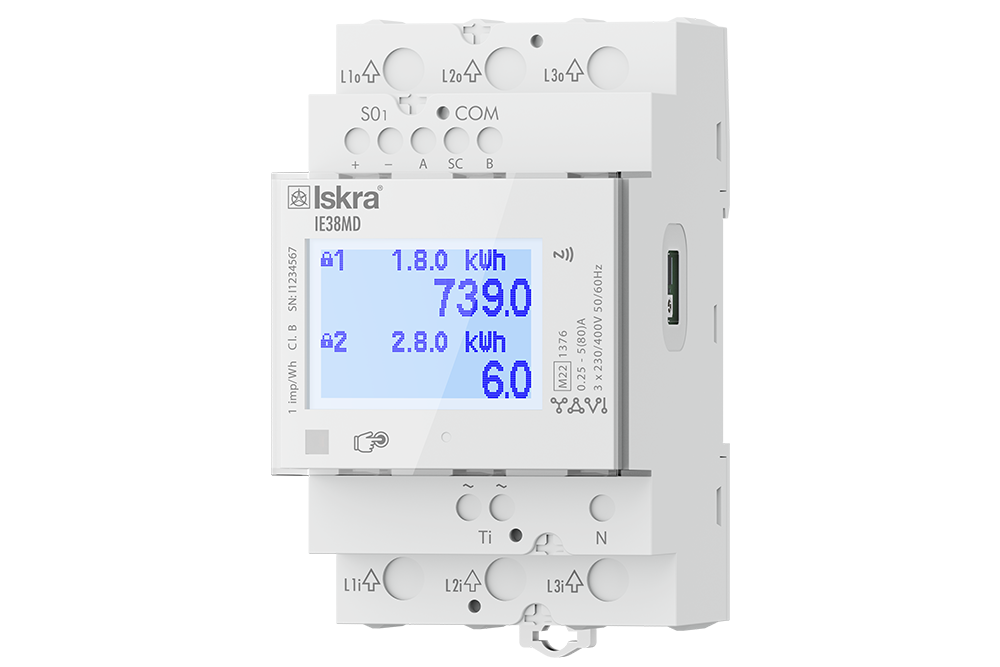

Smart Energy Meter IE38MD

  • COMPACT THREE-PHASE DIRECT CONNECTED DIN-RAIL MOUNTING METER.
  • CLASS B FOR ACTIVE ENERGY AND CLASS 2 FOR REACTIVE ENERGY, MID APPROVED.
  • MAXIMUM CURRENT 80 A (Imax).
  • VARIANTS: 2 x S0, S0 + RS485 (Modbus), S0 + M-BUS.
  • TARIFF INPUT.
  • SIDE IR COMMUNICATION FOR ADDONS.
  • NFC FOR EASY SETTING AND READING.
  • 70°C AMBIENT OPERATIONAL TEMPERATURE.
  • Three phase direct connected DIN-rail mounting meter.
  • Class 1 for active energy according to EN 62053-21 and MID approval for class B according to EN 50470-3.
  • Class 2 for reactive energy according to IEC 62053-23.
  • Bidirectional energy measurement (import/export).
  • Maximum current 80 A (Imax).
  • Display segment Matrix LCD.
  • Multifunctional front red LED.
  • IR serial communication.
  • Measurements of:
    • power (active/reactive/apparent),
    • energy (active/reactive/apparent, each phase and total),
    • voltage for each phase,
    • current for each phase,
    • phase to phase voltage
    • phase to phase angle,
    • frequency,
    • power factor (for each phase and total),
    • power angle (for each phase and total),
    • active tariff,
    • THD of voltage,
    • THD of current.
  • 2nd multifunction pulse output (valid only for IE38MS).
  • Modbus RS485 Serial communication (valid only for IE38MD).
  • M-bus Serial communication (valid only for IE38MM).
  • Tariff input (230 V AC).
  • Tariff management (up to 6 tariffs manageable via communication).
  • -25°C - 70°C ambient operation temperature.
  • Limit control (Alarm) function can give info about exceeded conditions and trigger BICOM switch through IR communication.
  • Sealable terminal cover.
  • DIN-rail mounting according to EN 60715.
  • 3 DIN modules width.
  • IE38MS - MID (IR, NFC) 2xS0, DUAL TARIFF, 80 A, 3-PM
  • IE38MM - MID (IR, NFC, M-bus) S0, DUAL TARIFF, 80 A, 3-PM
  • IE38MD - MID (IR, NFC, Modbus) S0, DUAL TARIFF, 80 A, 3-PM
