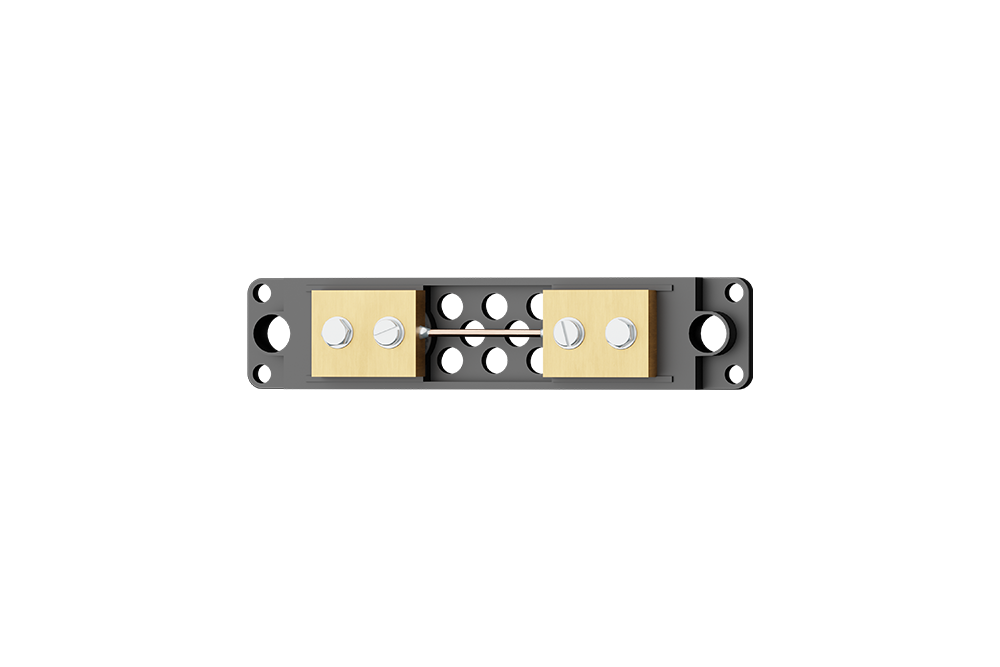

Shunt AR 0101
The AR 0101 separate shunt increases DC current ratings when connected to a meter with a moving coil. Connection wires with 0.035 Ohm resistance are enclosed with the shunt.
Dimensions comply with DIN 43703. The accuracy class is 0.5.
RATED CURRENT(A)/60mV | MASS (kg) |
1, 1.5 | 0,18 |
2.5, 4, 6, 10,15, 25 | 0,20 |
40, 60, 100, 150 | 0,14 |
250 | 0,55 |
400 | 0,80 |
600 | 0,84 |
1000 | 1,50 |
1500 | 2 |
2500 | 3 |
-
