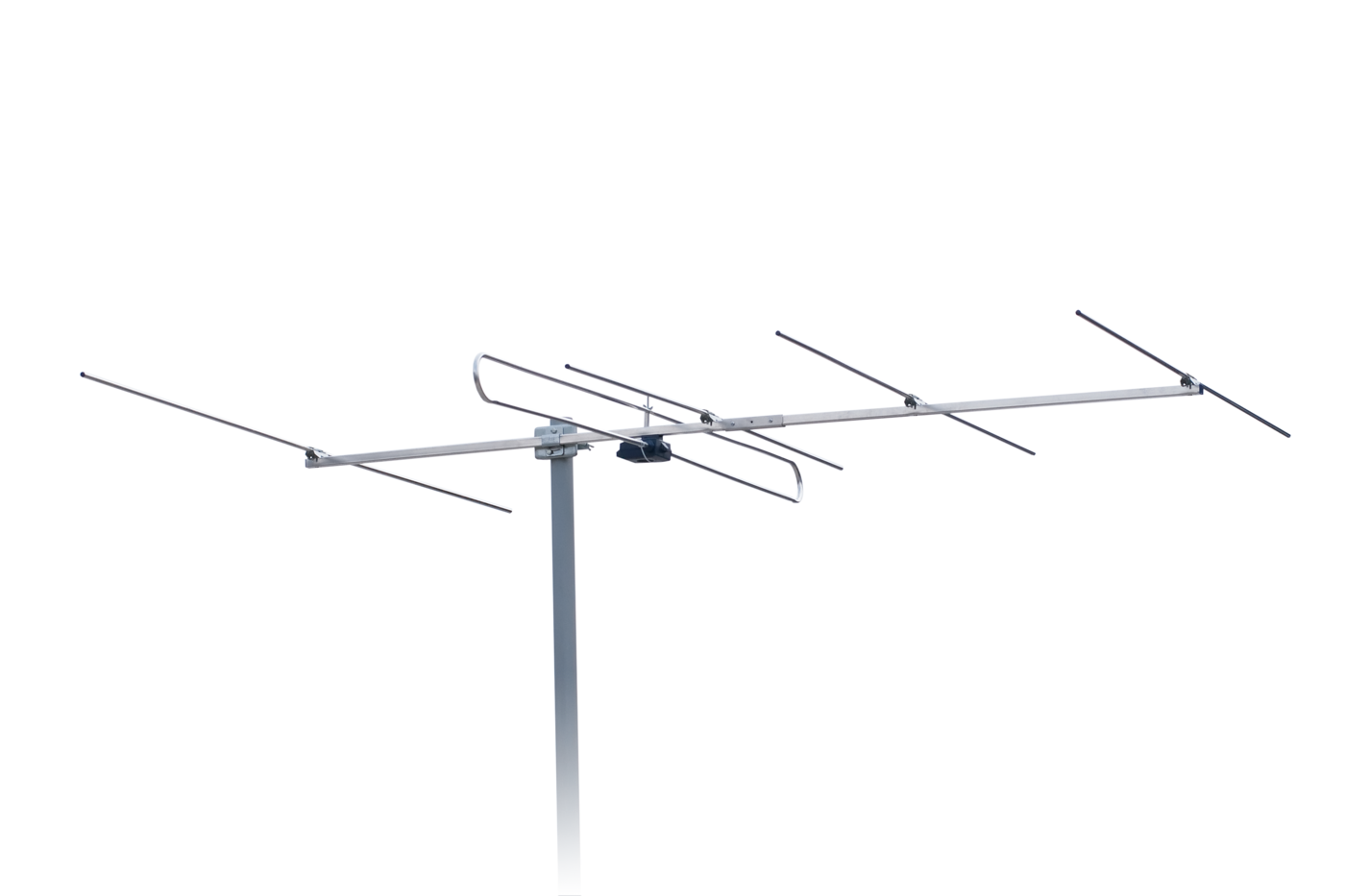

Radio Antenna FM-50 F
Radio antenna FM-50 F is used for analog radio signals reception in horizontal or vertical polarization.
Radio Antenna FM-50 F
- Channel (freq.): FM (87,5-108 MHz)
- No. of elements: 5
- Gain: 6,5-7,5 dB(i)
- F/B ratio: 18-24 dB
- Beam width: Horizontal 50° ; Vertical 70°
- Antenna lenght: 176 cm
- Impedance: 75 Ohm
- Coaxial cable connection: "F" female connector
- Inclination: 0-10°
- Antenna carrier: 18x18 mm
-
Mounting on mast with outside diameter: 20-62 mm
-
