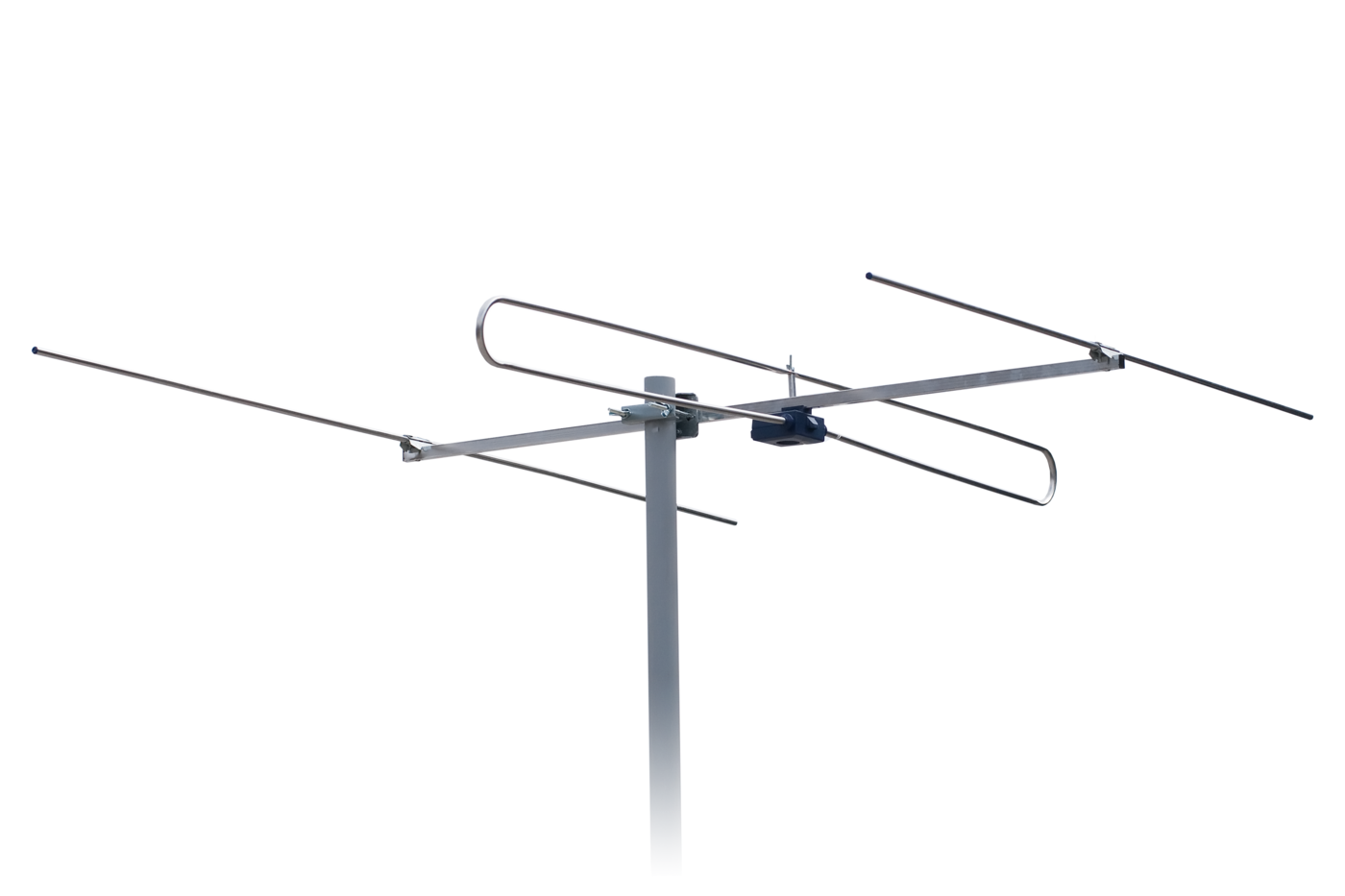

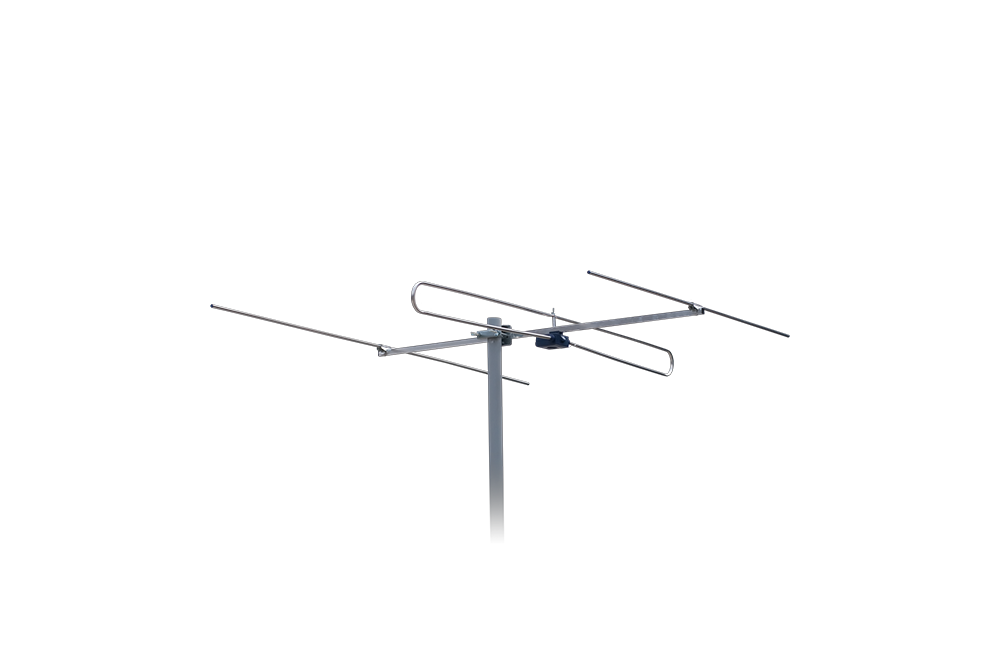

Radio Antenna FM-30 F
Radio antenna FM-30 F is used for analog radio signals reception in horizontal or vertical polarization.
Radio Antenna FM-30 F
- Channel (freq.): FM (87,5-108 MHz)
- No. of elements: 3
- Gain: 4,5-5,5 dB(i)
- F/B ratio: 10-15 dB
- Beam width: Horizontal 70° ; Vertical 110°
- Antenna lenght: 116 cm
- Impedance: 75 Ohm
- Coaxial cable connection: "F" female connector
- Inclination: 0-10°
- Antenna carrier: 18x12 mm
-
Mounting on mast with outside diameter: 20-62 mm
-
