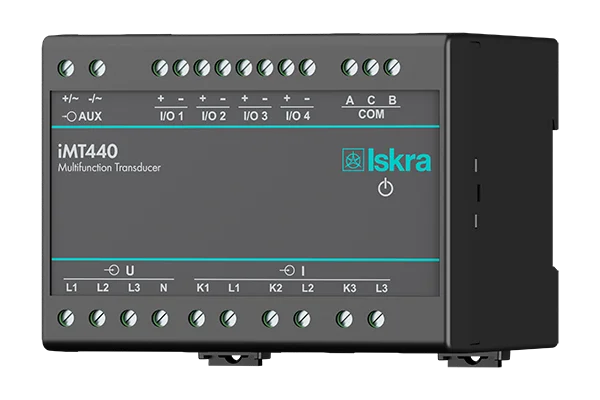

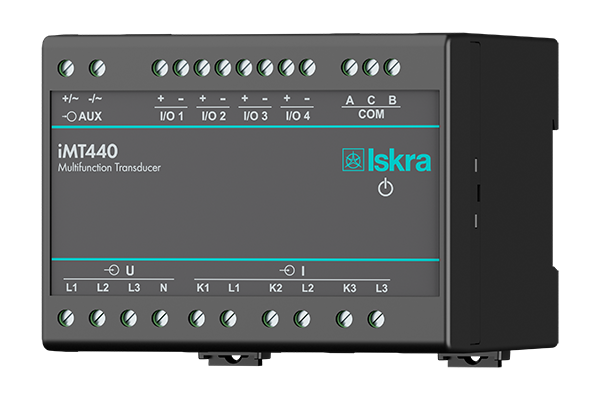

Measuring transducers iMT440

The iMT440 multifunction transducer is used for measuring and monitoring of all single-phase or three-phase values.

They measure TRMS value by means of fast sampling of voltage and current signals, which makes instruments suitable for acquisition of transient events. A built-in microcontroller calculates measurands (voltage, current, frequency, energy, power, power factor, THD phase angles, etc.) from the measured signals. A wide range of various I/O modules makes iMT440 a perfect choice for numerous applications.

• Analogue outputs with fast response.
• Alarm (relay) outputs can be used as supervisory functions with user-defined limit lines to all measured parameters.
• Precise energy measuring in all 4 quadrants with 4 configurable counters can be used as a secondary energy metering device.

iMT440 is delivered un-configured for customer configuration with user-friendly setting software MiQen. iMT440 supports standard serial communication RS232 or RS485 with speed up to 115200 baud, which is perfect for simple applications and serial bus interfacing.

Additional USB 2.0 interface can only be used for a fast set-up without the need for auxiliary power supply. This interface is provided with only BASIC insulation and can be used ONLY unconnected to power inputs.
Special "ship version" is available, certified by Bureau Veritas.
