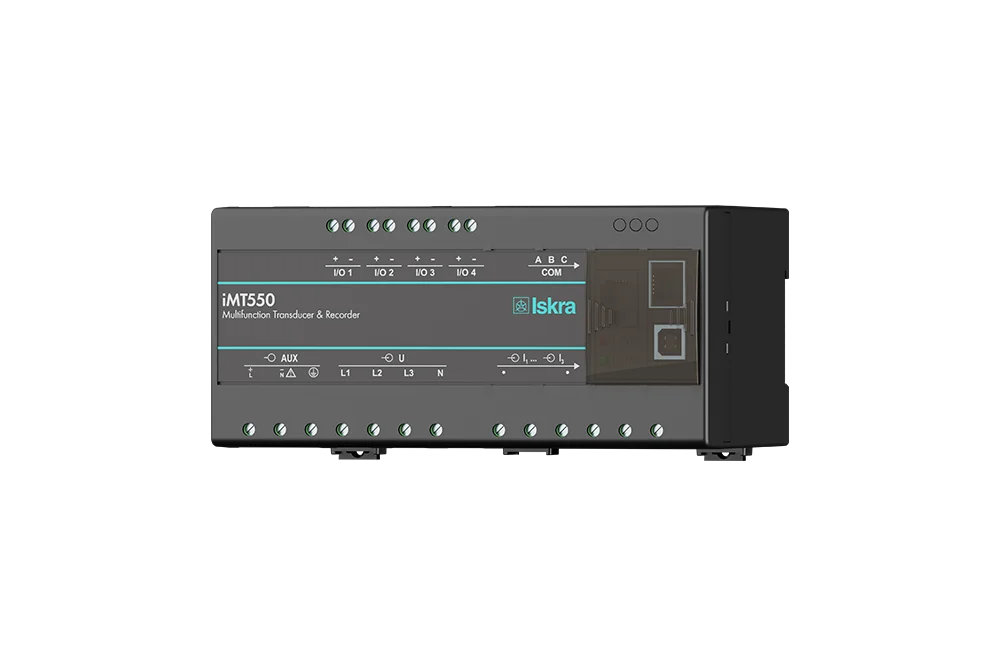

Measuring transducers iMT550_iMT560

The new series of measuring transducers iMT550/560 are intended for measuring, analysing and monitoring single-phase or three-phase electrical power network.

They measure TRMS value by means of fast sampling of voltage and current signals, which makes instruments suitable for acquisition of transient events. A built-in microcontroller calculates measurands (voltage, current, frequency, energy, power, power factor, THD phase angles, etc.) from the measured signals.

The iMT560 multi transducer and analyser is used for a permanent analysis of electricity supply quality in compliance with the EN 50160 standard.

  • Records are stored in the internal memory for the period of the last three years.
  • Moreover, more than 100,000 deviations of the measurands from the standard values are stored, which enables finding eventual reasons for the problems in the network.
  • A wide range of various I/O modules makes iMT560 a perfect choice for numerous applications.

iMT560 can be delivered pre-configured to the required measuring set-up and output characteristic or it can be delivered un-configured for customer configuration with user-friendly setting software MiQen. iMT560 supports a wide range of communication interfaces. Standard serial RS232/485 with speed up to 115200 baud is perfect for simple applications and serial bus interfacing.



  • Product request
  • Download software

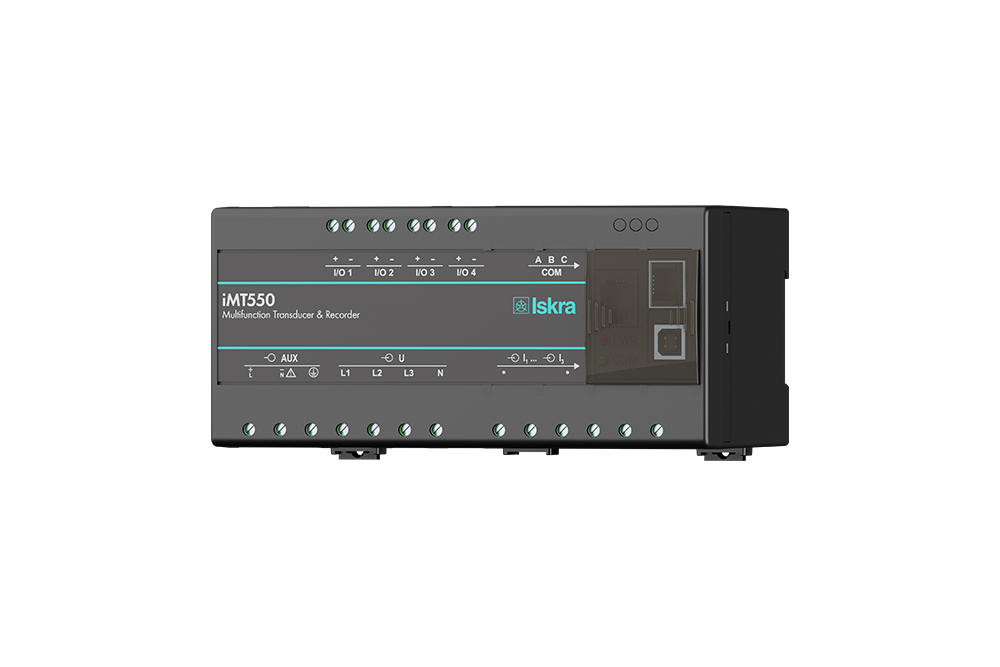

Measuring transducers iMT550_iMT560

Measuring transducers iMT550_iMT560

  • EVALUATION OF THE ELECTRICITY SUPPLY QUALITY IN COMPLIANCE WITH EN 50160.
  • VOLTAGE AND CURRENT AUTO RANGE MEASUREMENTS UP TO 600 V#, 12.5 A.
  • WIDE MEASUREMENT FREQUENCY RANGE 16 HZ– 400 HZ.
  • POWER ACCURACY CLASS 0.2 (IEC-688), 0.1 ON COMMUNICATION.
  • UP TO THREE COMMUNICATION PORTS.
  • REMOTE DISPLAY iRD500.
  • UP TO FOUR I/O MODULES.
  • POWERFUL ANALOGUE OUTPUT; 6 VOLTAGE AND CURRENT RANGES, NON-LINEAR CHARACTERISTICS.

The iMT560 multi transducer and analyser is used for a permanent analysis of electricity supply quality in compliance with the EN 50160 standard. Records are stored in the internal memory for the period of the last three years. Moreover, more than 100,000 deviations of the measurands from the standard values are stored, which enables finding eventual reasons for the problems in network. Wide range of various I/O modules makes iMT560 a perfect choice for numerous applications. iMT560 can be delivered pre-configured to the required measuring set-up and output characteristic or it can be delivered un-configured for customer configuration with user friendly setting software MiQen. iMT560 supports a wide range of communication interfaces. Standard serial RS232/485 with speed up to 115200 baud is perfect for simple applications and serial bus interfacing.
