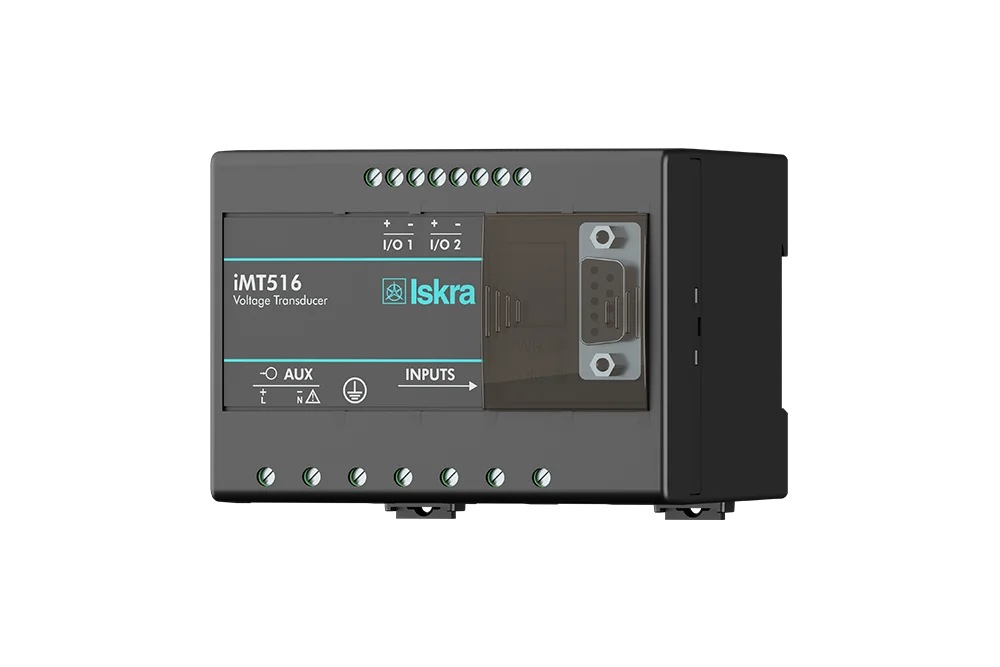

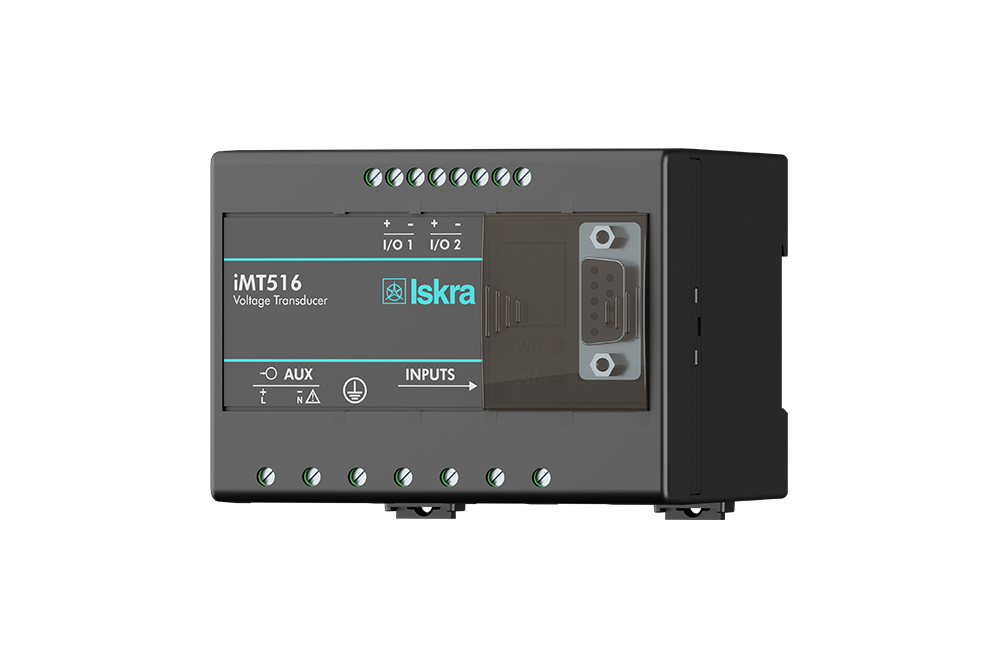

Measuring transducers iMT516

iMT516 is intended for measuring and monitoring single-phase electrical power network.
Voltage input is electrically isolated from the system by means of high resistive input chain. It measures true RMS voltage value by means of fast sampling of voltage signals, which makes instruments suitable for acquisition of transient events. A built-in microcontroller calculates measurands (voltage, frequency, THD U, MD) from the measured signals. Measurands can be then converted into load independent DC current or voltage which is proportional to the true RMS measured value for the purpose of regulation of analogue and/or digital devices.


The iMT516 voltage transducer is used for permanent monitoring of a single-phase voltage and frequency values. A wide range of various I/O modules makes iMT516 a perfect choice for numerous applications.

iMT516 is delivered configured to default values. Subsequent customer configuration is possible with user friendly setting software MiQen.. iMT516 supports a wide range of communication interfaces. Standard serial RS232/485 with speed up to 115200 baud is perfect for simple applications and serial bus interfacing. Ethernet 10/100 is ideal for a long distance monitoring and configuration of numerous transducers. USB 2.0 can be used for a fast set-up or memory acquisition.
