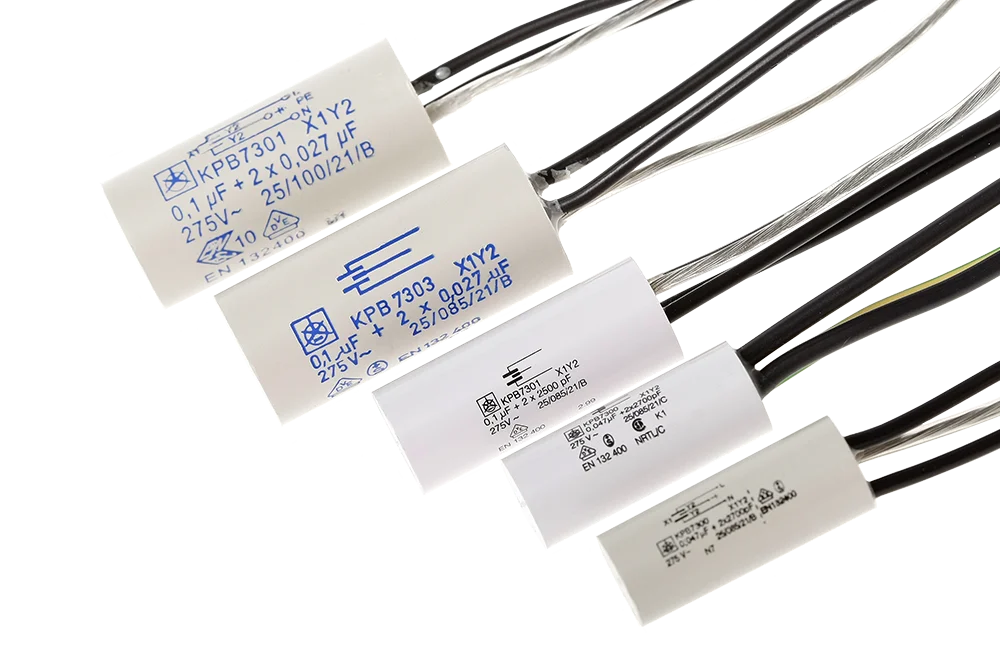

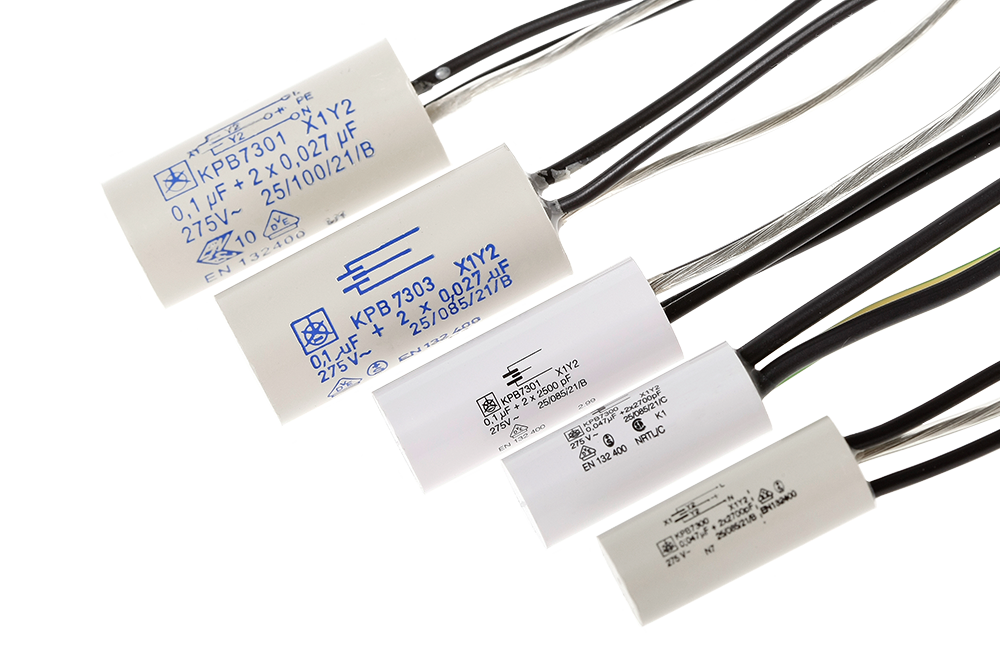

Paper Capacitors (KPB73xx)

They are used in home appliances, electrical hand tools and DC electromotors.

KPB 73xx (class X1Y2) – they are used in home appliances, electrical hand tools and DC electromotors.
KPB 7325, KPB 7341, KPB 7x12 (razred X1Y2) – they are used in home appliances, electrical hand tools and DC electromotors.

They are used in home appliances, electrical hand tools and DC electromotors.
Dielectric: Paper impregnated
Electrodes: Aluminium foil
Rated voltage: 250 V AC, 275 V AC
Capacitance tolerance: +/- 20 %
Climatic category: 25/100/21 acc. to IEC 60068-1
Passive flammability: acc. to IEC60384-14
Temperature range: -25° to +100°C
Test voltage: X1 capacitor 1790 V DC, 2 s; Y2 capacitor 2050 V AC, 2 s
Insulation resistance at 20°C, Um = 100 V DC, t = 1min: Ri ≥ 6000MΩ for C ≤ 0.33 µF, Ri x Cn ≥ 2000 s for C %mygt% 0.33 µF
Complies to: IEC/UL/CSA 60384-14
