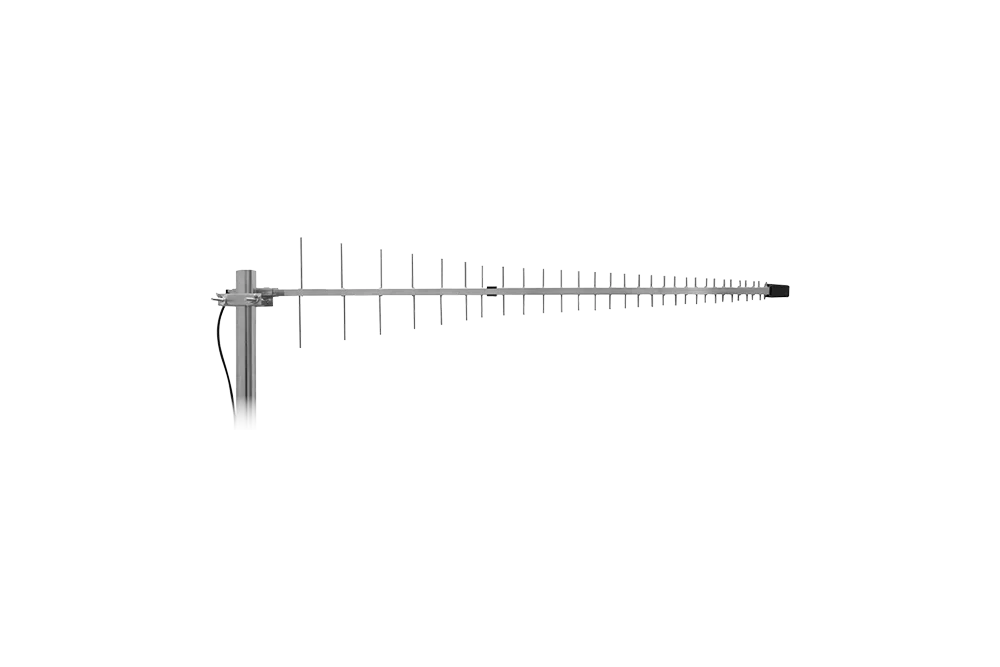

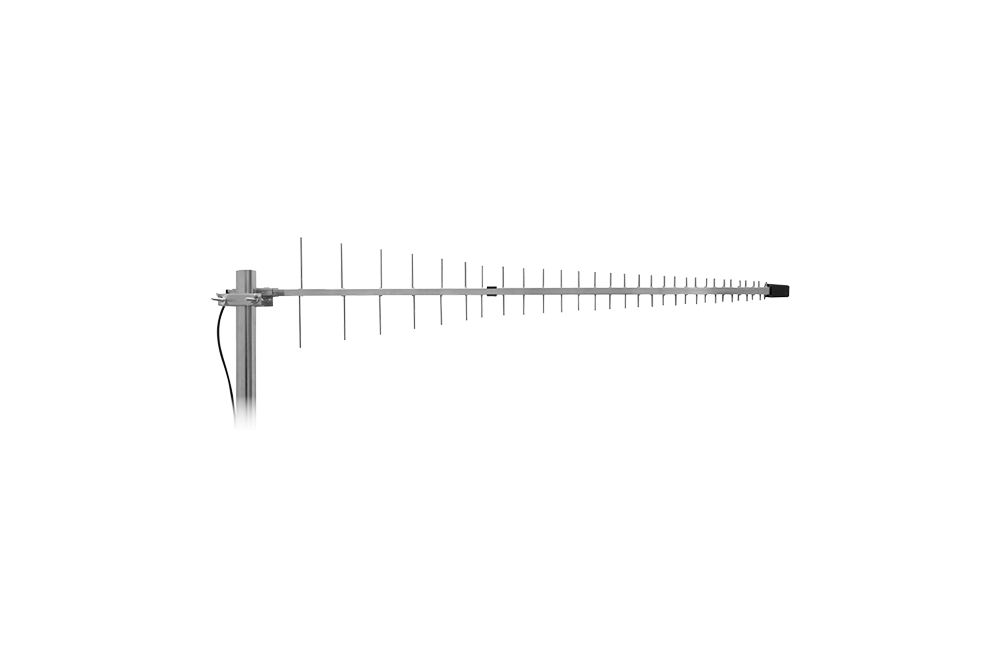

Antenna P-60 5G 7003800 UNICOM

Antenna P-60 5G 7003800 is used for the reception of mobile operators' signals.

It covers ultra-wide frequency range from LTE 700 to LTE 5G 3,8 GHz frequency bands.

A major feature of the antennas we produce is that they all have a built-in type »SMA« male connector for simple installation to the antenna.

Reliable and robust design for optimum performance and long life time. Easy to install.

P-60 5G 7003800: Version for vertical polarization only and »FME« female connector on cable end.
P-60 5G 7003800 H/V: Version for horizontal or vertical polarization and »FME« female connector on cable end.
P-60 5G 7003800 SMA: Version for vertical polarization only and »SMA« male connector on cable end.
P-60 5G 7003800 SMA H/V: Version for horizontal or vertical polarization and »SMA« male connector on cable end.
P-60 5G 7003800 MIMO: Set of two antennas in 45° polarisation. Each antenna has SMA male connector on cable end.

Freq. band (frequency): LTE 5G 700+800 (698–862 MHz), GSM/UMTS/LTE900 (2G/3G/3G+/4G) (880–960 MHz), LTE 5G 1500 (1427–1518 MHz), GSM/LTE 1800 (2G/4G) (1710–1880 MHz), GSM/LTE 2100 (3G+/4G) (1920–2170 MHz), Wi-Fi 2,4 GHz (2401–2495 MHz), LTE 2,6 GHz (2,5–2,7 GHz), LTE 5G (3,2–3,8 GHz)
No. of elements: 60
Gain: 7,5-10,5 dB(i)
Max. VSWR: ˂1,6 : 1
F/B ratio: 23 dB
Beam width: Horizontal 52°; Vertical 44°
Impedance: 50 Ohm
Max. power connection: 50 Watt
Antenna length: 110 cm
Coaxial cable: impedance 50 Ohm
