Reed Frequency Meters ZQ
Reed frequency meters are intended for measurement of frequencies in the range from 45 Hz to 65 Hz. Two-system reed frequency meters are intended for measurement of two frequencies in the system for synchronisation. Their class is 0.5.
Meters are available with different front frames:
ZQ 0317 – 72 x 72 mm
ZQ 0217 – 96 x 96 mm
ZQ 0117 – 144 x 144 mm

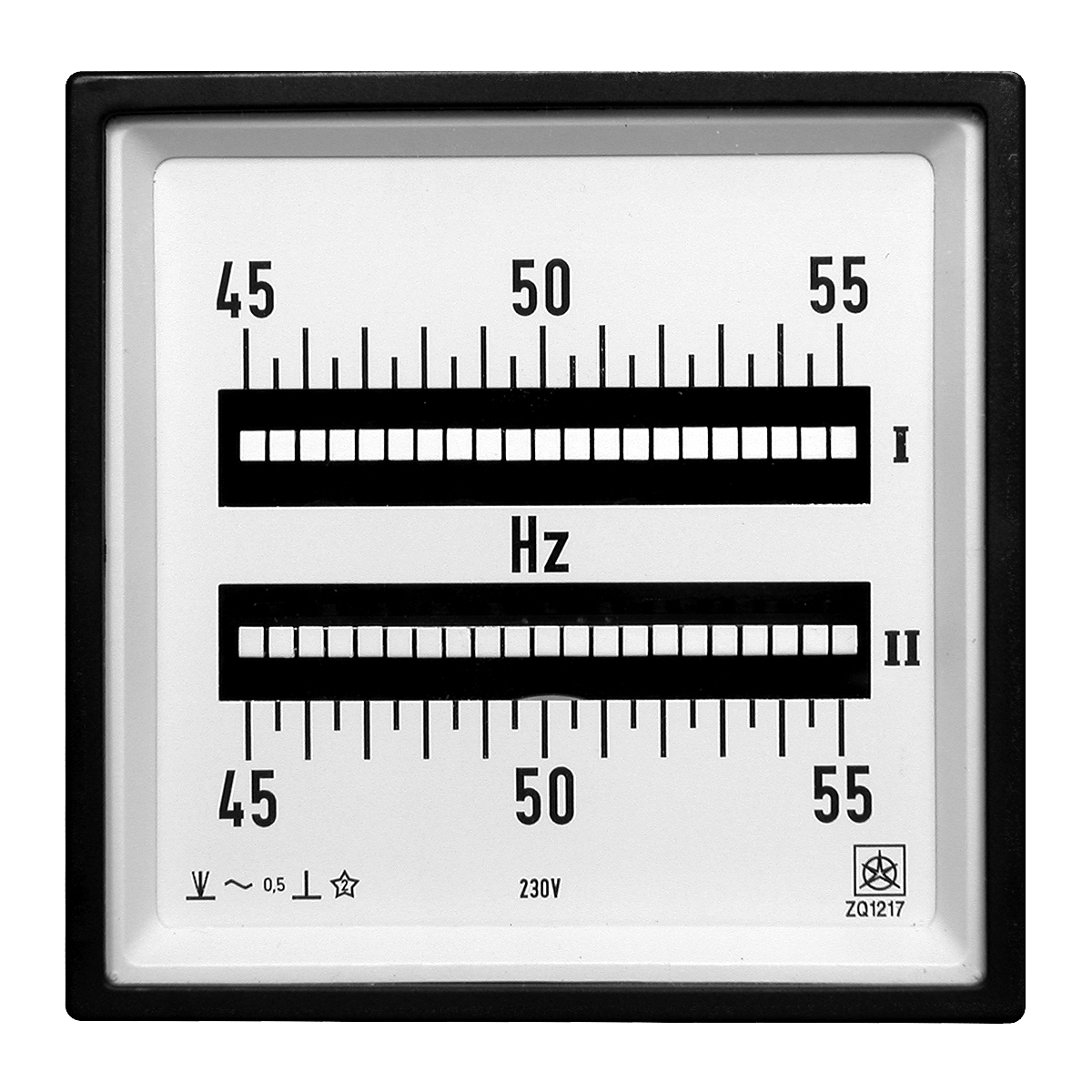

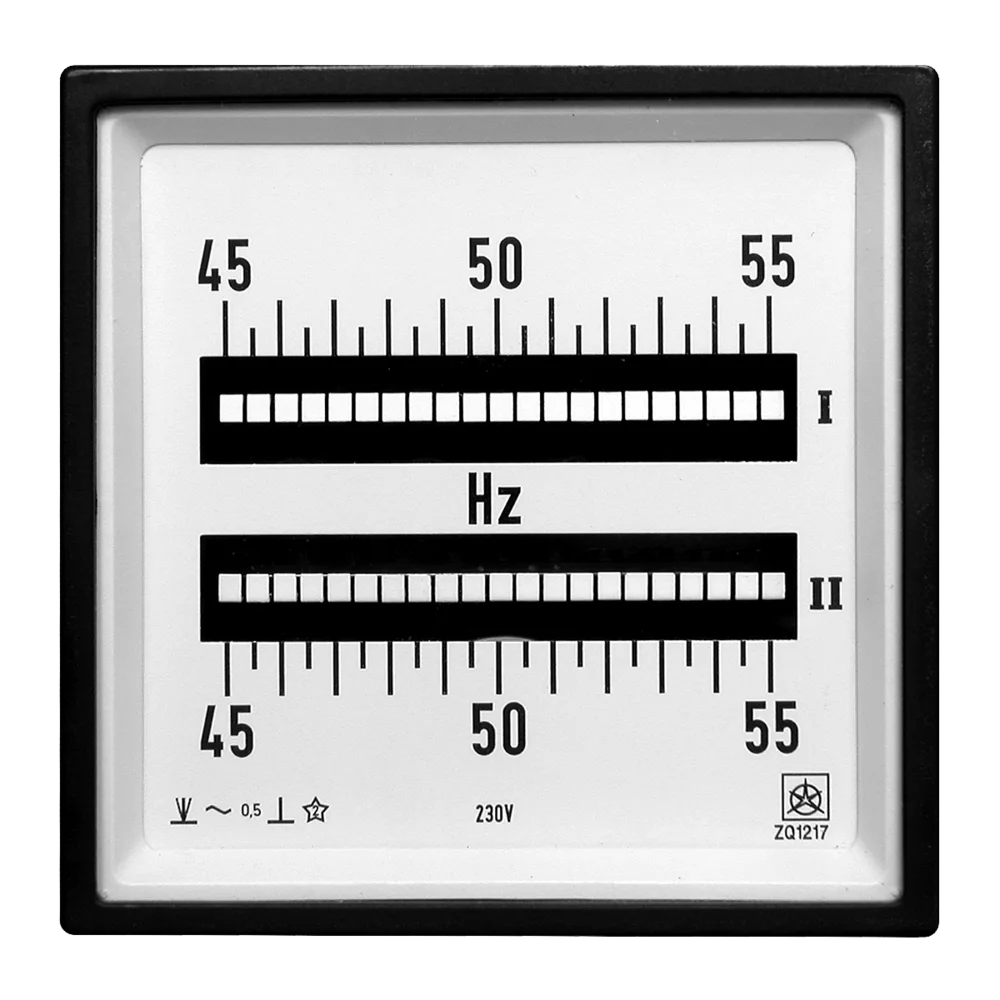

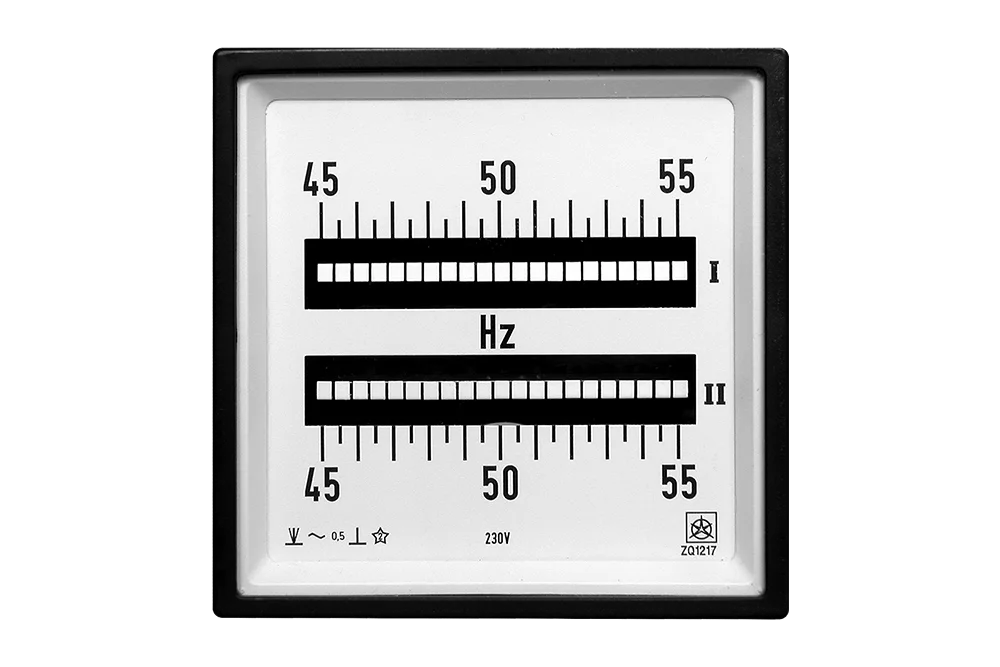

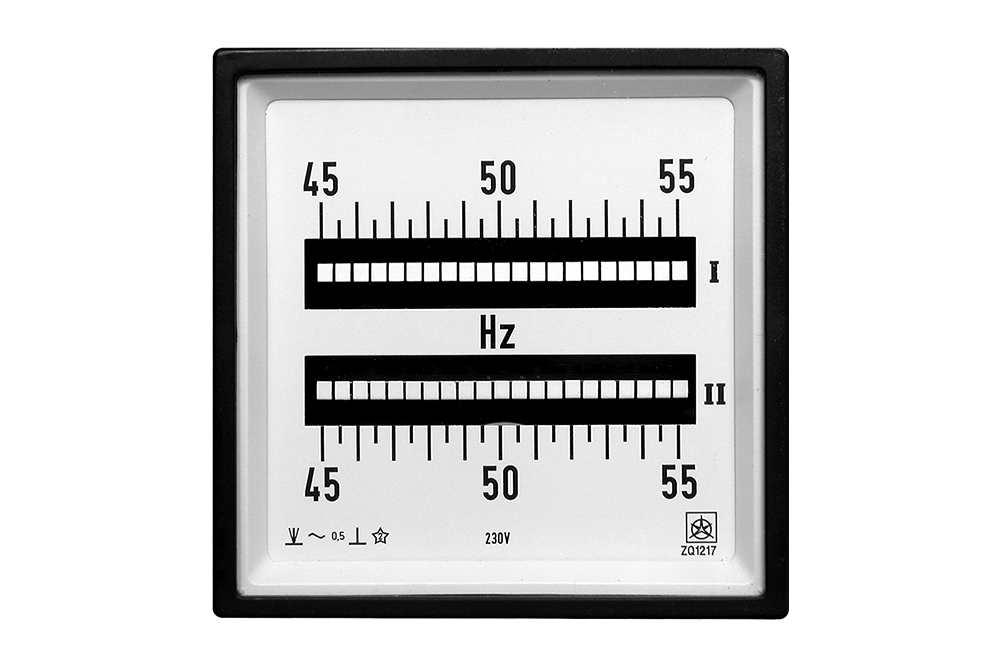

ZQ 1217 - 96 x 96 mm - double reed frequency meter
ZQ 1117 - 144 x 144 mm - double reed frequency meter
The ZQ 0x17 group has one reed and the ZQ 1x17 group has two reeds.
Ship versions are available for ZQ 0317, ZQ 0217, ZQ 0117 meters.
-
