Active or Reactive Power Meters EQ
Power meters are electronic meters intended for measuring active or reactive power in single phase or three-phase networks, with balanced or unbalanced load. The accuracy class is 1.5. The scale value depends on primary values of current and voltage.
Active or Reactive Power Meters EQ
Meters are available with different front frames:

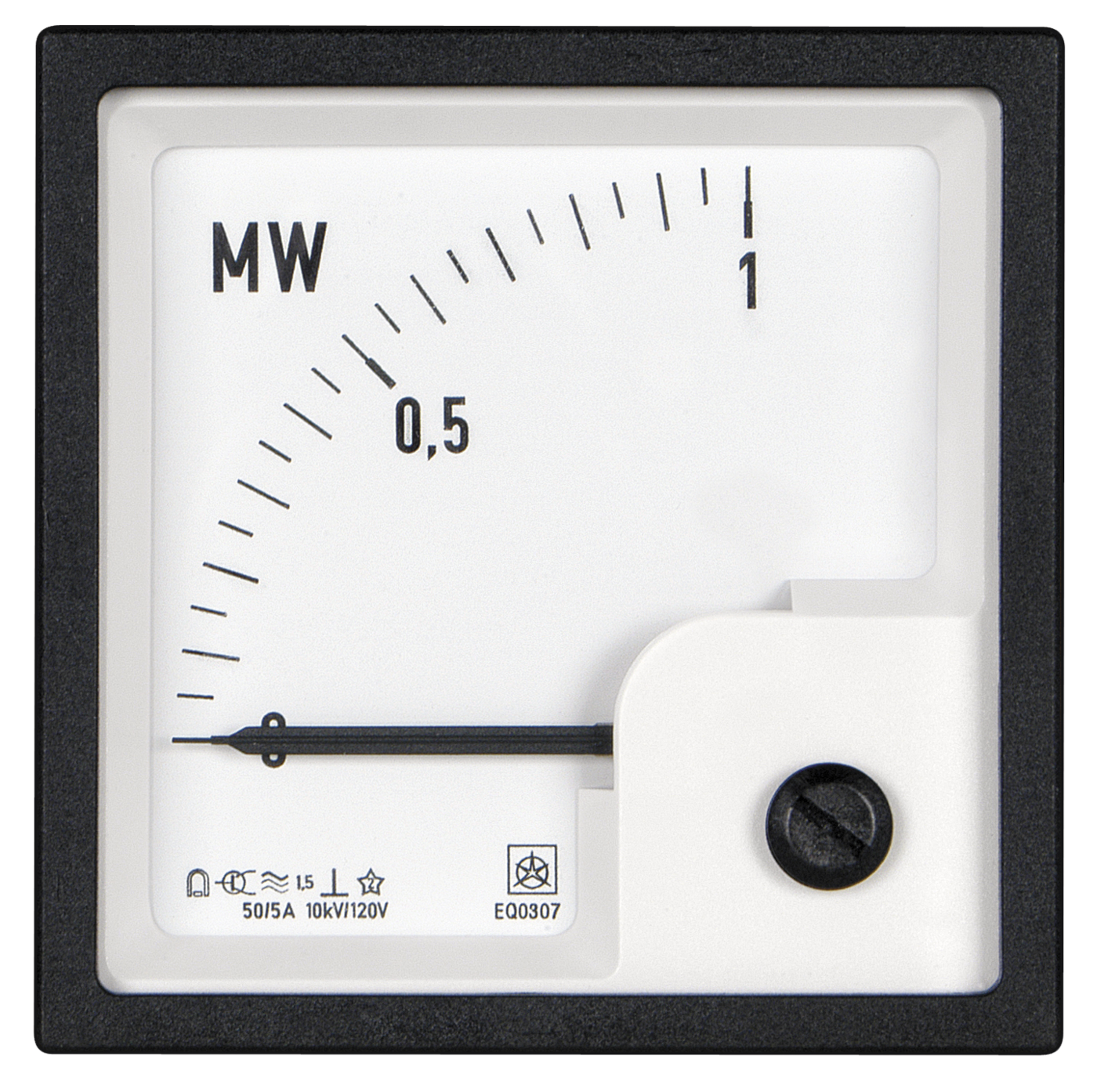

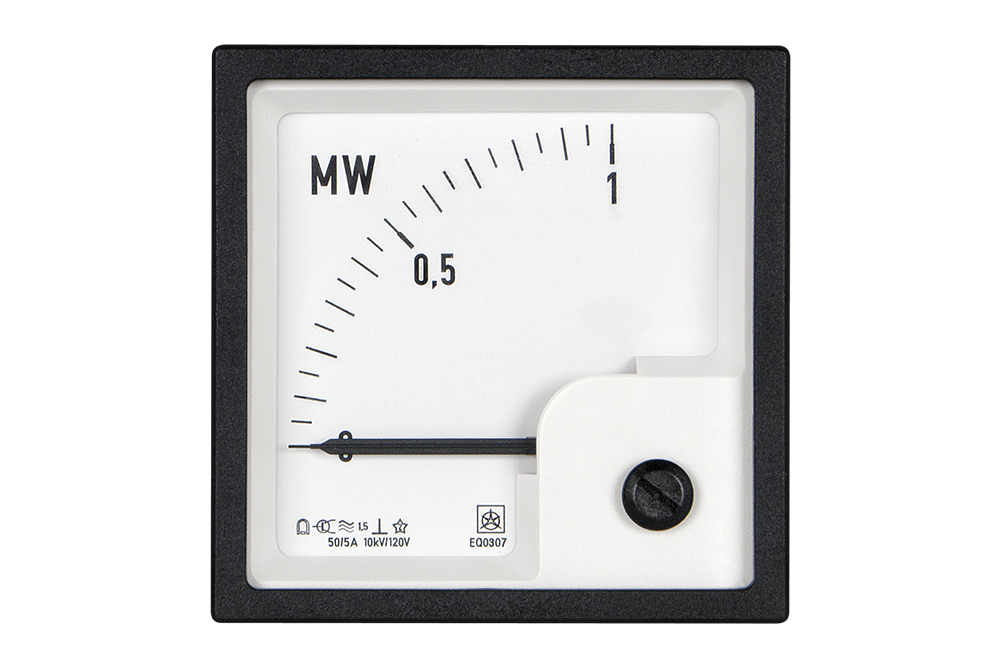

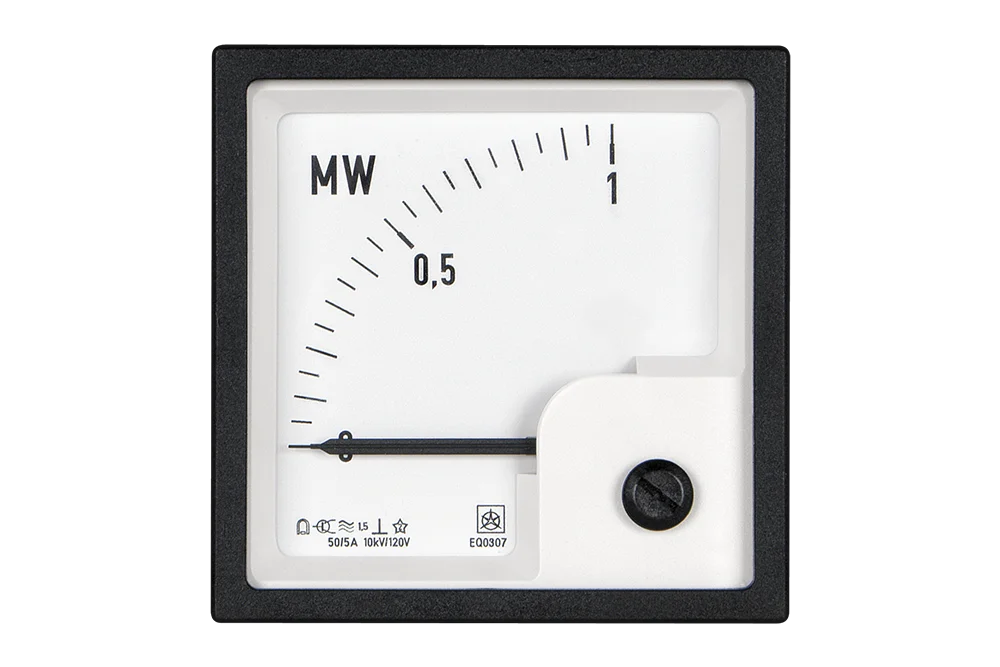

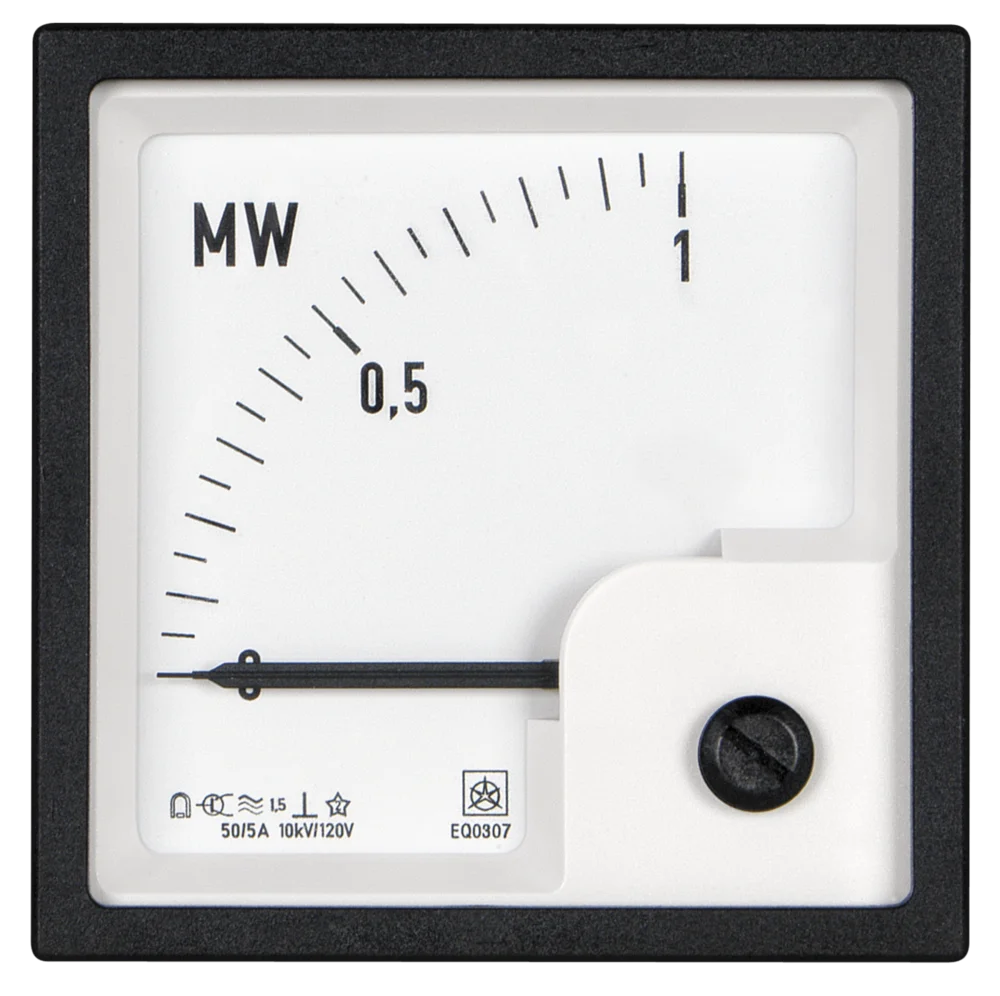

EQ 0307 – 72 x 72 mm
EQ 0207 – 96 x 96 mm
EQ 0107 – 144 x 144 mm
EQ 2307 – 72 x 72 mm
EQ 2207 – 96 x 96 mm
EQ 2107 – 144 x 144 mm
Their dials can be 90 degrees in the EQ 0x07 and 240 degrees in the EQ 2x07.
Ship versions of the EQ 0207and EQ 0107 are available.
-
Contact Sales
Gašper Albinini
E-mail Contact card -
Technical Documentation
Data sheet EQ xx07 PDF 2,482 kB Measuring Instruments catalogue PDF 5,964 kB -
Certificates
EU_DofC__EQ_0x07__EQ_2x07 PDF 318 kB Bureau Veritas Approval Certificate for EQ, YQ, BQ, WQ and CQ series PDF 411 kB
